TUBE EXPANSION SYSTEMS
TUBE EXPANSION SYSTEMS
- TORSION-1800 is a Wattage based Electronic Controller using the latest Microcontroller.
- Specially designed to give fast and uniform expansion.
- It uses multiple microcontroller chips for controlling power and managing display with user friendly software with all protections.

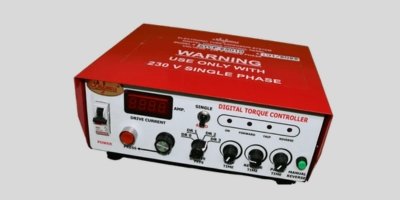

Electric Expansion Wattage Based Torque Controller
- Suitable to use with German make drives
- Microprocessor controlled wattage based Panel.
- Fully solid state. Short circuit and overload protection.
- Specially designed to give accurate and fast expansion.
- Supply Voltage : 230Volts -50/60Hz
- Amp : 12
- Wattage adjustment : 1 increment.
- Weight : 7.5 kgs

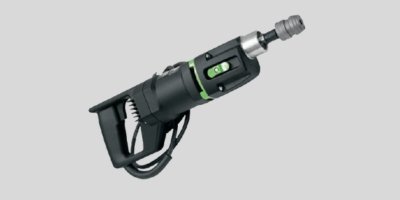

Tube Expansion Drive -2
- Tube Capacity : Up to ⅝” OD
- Weight : 2 kgs
Tube Expansion Drive – 5
- German make Drive with 2 speed gearbox
Tube Capacity : Up to 1” OD
Weight : 7.5 Kgs
Tube Expansion Drive – 6
- Tube Capacity : Up to ⅝” OD
- Weight : 2 kgs
Pneumatic Tube Expansion
- Safe compared to any conventional tube expansion method
- No electrical so no fire hazard
- Torque controlled to ensure repeatability
- Highest power to weight ratio
- Easy to adjust the torque setting

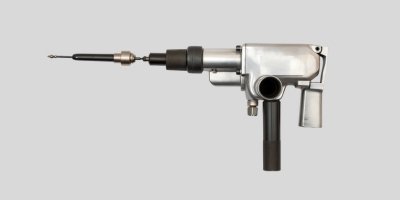

Our Pistol Pneumatic rolling motors are ergonomically designed for accurate and
fast completion of tube to tube sheet joint of Heat exchangers and condensers.
TYPHOON 58 : Up to 5/8” OD Tube
TYPHOON 100 : Up to 1” OD Tube
TYPHOON 114 : Up to 1.1/4” OD Tube

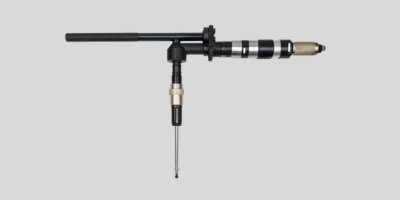

Our right-angle Pneumatic rolling motors are specifically designed for Boiler Tube Expansion in steam / Mud Drum, fire tube
Boiler and other similar equipment.
TYPHOON 200 : Up to 2” OD Tube
TYPHOON 300 : Up to 3” OD Tube
TYPHOON 400 : Up to 4” OD Tube
Hydraulic Tube Expansion
- High productivity, rugged construction
- Torque controlled to ensure repeatability
- Silent operation
- Specially designed to work inside boiler drums
- 24 volt dc control voltage for operator safety inside drum
- Automatic tube expansion thereby offering attractive saving in labor, time & money

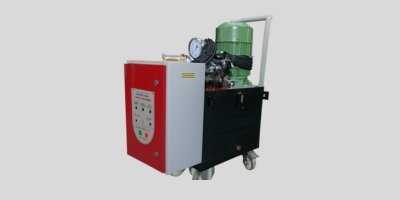

Hydraulic Power Unit Tube Rider – 5
- Input Supply : 3 phase / 415Volts
- Electric Motor : 5 HP
- Control Voltage : 24VDC
- Max Working Pressure : 100 Bar
- Weight : 100 Kgs

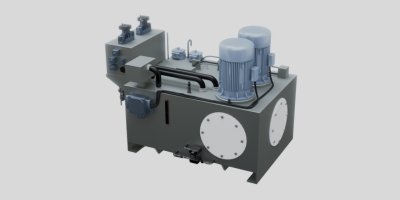

Hydraulic Power Unit Tube Rider – 10
To operate 2nos Hydraulic drives simultaneously
- Input Supply : 3 phase / 415Volts
- Electric Motor : 10 HP
- Control Voltage : 24VDC
- Max Working Pressure : 100 Bar
- Weight : 220 Kgs

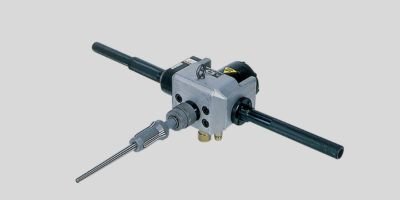

Hydraulic Drive Unit
Compact: Easy to use inside Boiler drum and inside confined space such as drum.
Silent: Noiseless operation thereby reduces operator stress and fatigue.
Safe: Work can be carried out in damp condition with maximum safety.24VDC control voltage which is absolutely safe for the operator.
TED-112 : Suitable up to tube OD 1.½”
TED-212 : Suitable up to tube OD 2.½”
TED-300 : Suitable up to tube OD 3”
TED-400 : Suitable up to tube OD 4”
