Tube Expanders

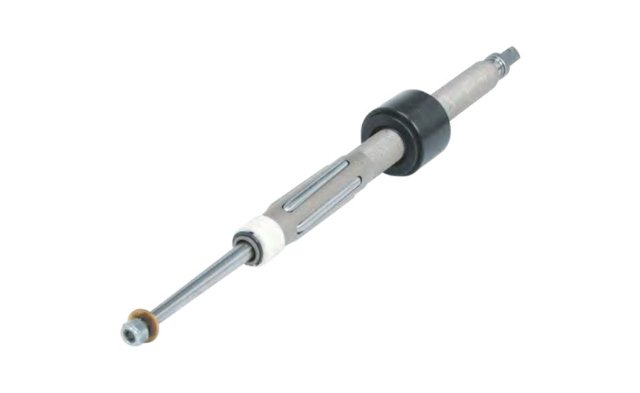

Condenser Tube Expanders
- Made from High strength Alloy Steel
- Self-Feeding Expander.
- Specifically made for use in shell & tube type Chiller, oil coolers, heat exchanger, feedwater heater, fin fan cooler.
900 Series
- 3 roller tube expander for small tube sheet thickness
- Suitable for tube OD range : 1/4″ to 3/8” OD
- Roller length option : ¾” & 1.¼”
800 Series
- 3 roller adjustable depth tube expander for small tube sheet thickness
- Suitable for tube OD range : 1/2″ to 1.1/2”
- Tube sheet adjustable depth range : 1.¼” to 2.¼”
- Roller length options : 1.½” & 2.¼
800-5 Series
- 5 roller adjustable depth tube expander for thin wall tube and small tube sheet thickness
- Suitable for tube OD range : 1/2″ to 1.1/2″
- Tube sheet adjustable depth range : 1.¼” to 2.¼”
- Roller length options : 1.½” & 2.¼”
1200 Series
- 3 roller adjustable depth tube expander for thick tube sheet thickness
- Suitable for tube OD range : 1/2″ to 1.1/2”
- Tube sheet adjustable depth range : 1.¼” to 12.¾”
- Roller length options : 1.½” & 2.¼”
1200-5 Series
- 5 roller adjustable depth tube expander for thin wall tube and small tube sheet thickness
- Suitable for tube OD range : 1/2″ to 1.1/2″
- Tube sheet adjustable depth range : 1.¼” to 12.¾”
- Roller length options : 1.½” & 2.¼”
Boiler Tube Expander
- Made from High strength Alloy Steel
- Self-Feeding Expander
- Specifically made for use in Fire tube boilers & Bi-drum boilers
A Series
- 3 roller tube expander with fix rolling length non-adjustable type without bearing
- Suitable for tube OD range : 7/8″ to 4.1/2”
- Fix roller length options : 2.¼”, 2.½”, 3”, 3.½” & 4”
AB Series
- 3 roller tube expander with fix rolling length non-adjustable type with bearing
- Suitable for tube OD range : 7/8″ to 4.1/2”
- Fix roller length options : 2.¼”, 2.½”, 3”, 3.½” & 4”
8012 Series
- 3 roller adjustable depth tube expander for thick tube sheet thickness with bearing
- Suitable for tube OD range : 1.¾” to 5”
- Tube sheet adjustable depth range : 1/2” to 8”
- Roller length option : 2.¼”
AF3 Series
- Parallel cum bellmouth tube expander with fix rolling length non-adjustable type
- Suitable for tube OD range : 7/8″ to 4.1/2”
- Fix roller length options : 1.⅛”, 1.3/8″, 1.⅞”, 2.⅜” & 2.⅞”
114 Series
- Parallel cum bellmouth tube expander with fix rolling length non-adjustable type
- Suitable for tube OD range : 2″ to 4.1/2” OD
- Fix roller length options : 2.¼”, 2.½”, 3”, 3.½” & 4”
SB Series
- 5 roller tube expander with adjustable collar for evaporator of boiler in sugar production (for TOP tube sheet)
- Suitable for tube OD range : 1.½” to 4.1/2”
- Roller length options : 1.¼”, 1.½” & 2”
CSB Series
- 5 roller tube expander with adjustable collar for evaporator of boiler for sugar production (for BOTTOM tube sheet)
- Suitable tube OD range : 1.3/4 to 4″
- Roller length options : 32mm
- Depth Up to – 3.2m
